Point Clouds And 3D Scans

Point Clouds and 3D Site Scans

Request a sample Point Cloud/3D Walkthrough

Case Study: Richard Waterson from EJE Architecture

Regular client Richard Waterson from EJE Architecture Newcastle NSW communicating why he uses us. From house renovations to commercial refurbishments or extensions, contact us for a quote and to find out more!

From Small Renovations to Large Commercial Projects

We have a range of point cloud packages to suite the needs of all job sizes, from a basic renovation to a multi-level hotel or heritage building throughout Newcastle and NSW. Replace your current system of hand-held laser and camera, with a 3D walkthrough and point cloud package, or use it as your QC for your site measure. Literally 1000’s of potential images and point clouds to 0.2% accuracy.

Case study - Residential Site -renovation/extension

The benefits of utilising a 3D scan and point cloud for a residential project are outlined in this video.

1 site visit from openhouse3D
2-3 year design project, 3 design concepts.
1 - site visit by designer
1 - 5min site visit by engineer
Numerous hours saved in travel, the 3D scan pays for itself.
Environmental benefits from minimising fuel use
Open up the opportunity of designing anywhere in the state/country

Request a sample Point Cloud/3D Walkthrough of this project

3D scan of a vacant lot with adjoining properties

The benefits of a 3d scan/point cloud package for a vacant site for design documentation.

Request a sample Point Cloud/3D Walkthrough of this vacant site with adjoining properties

Different Packages

Basic ground-based point cloud internal only (to 0.2% accuracy), including Matterport high resolution measurable walkthrough/condition report.

Add ground based external (façade).
Add drone-based external point cloud for roof and hidden detail.
Add Merged point clouds internal/external drone)
Add control points to GDA 2020 and AHD
Add a hi resolution 3d external mesh from the drone for an external detailed condition report

For architecture engineering and construction, we can create the following outputs: -

4K resolution digital images
Colourized point clouds XYZ files or E57 (open in AutoCAD, ReCap, or Revit)
Floorplan Image
Reflected ceiling plan image
3D mesh file (OBJ)

Snapshots of some of our Projects

City skyline

Rydges Hotel, The Rocks (point cloud section)
Button
Birthday Sparks

Rydges Hotel, The Rocks (3D mesh image)
Button
Fashion Magazine

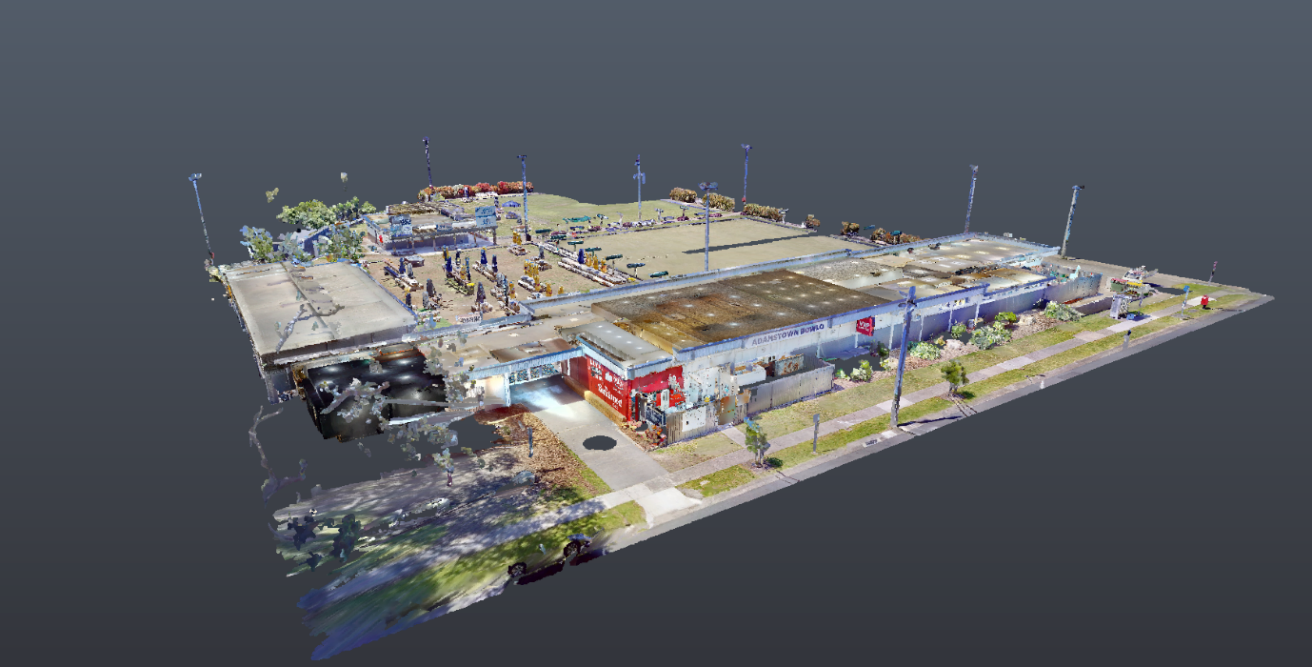

Adamstown Bowling Club

Button
Blurred Lines

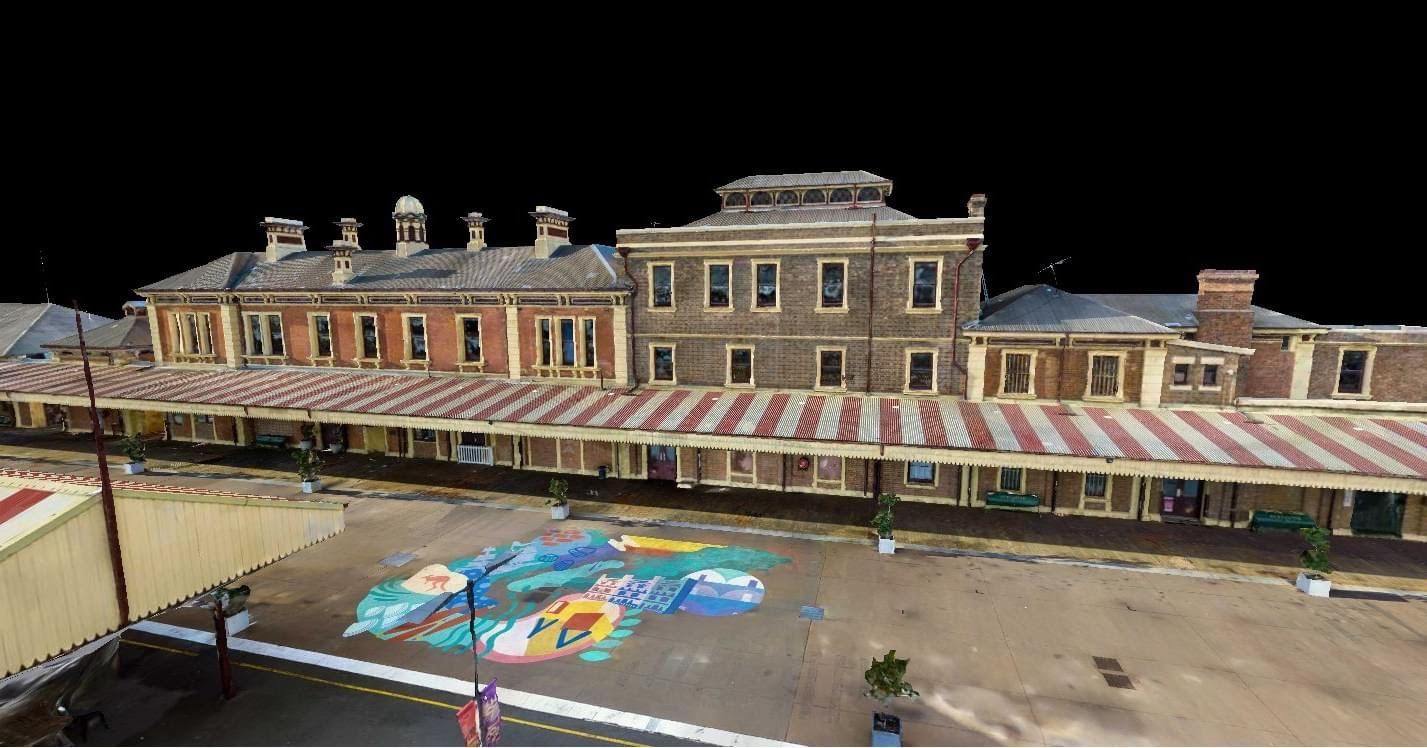

Newcastle Station (point cloud image
Button
Newcastle Station (Hi-res 3D mesh model zoomed image)- ideal for condition reports.
Button
Newcastle Station (Hi-res 3D mesh model image)
Button
Wolfpack Hotel Mudgee – 3d walkthrough image
Button

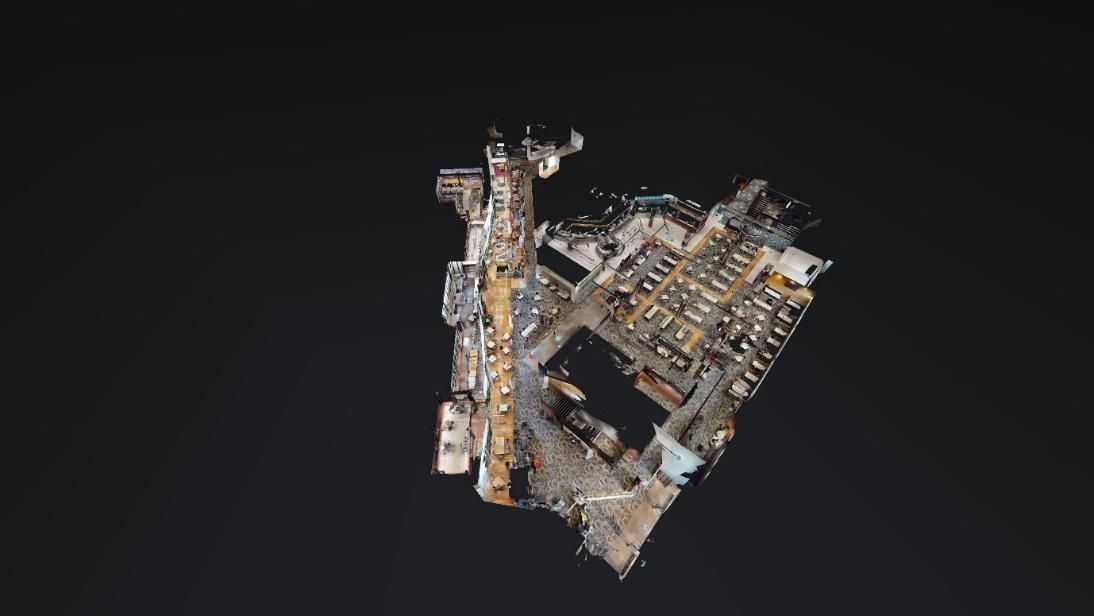

Wests New Lambton – food court level (3d walkthrough image)
Button

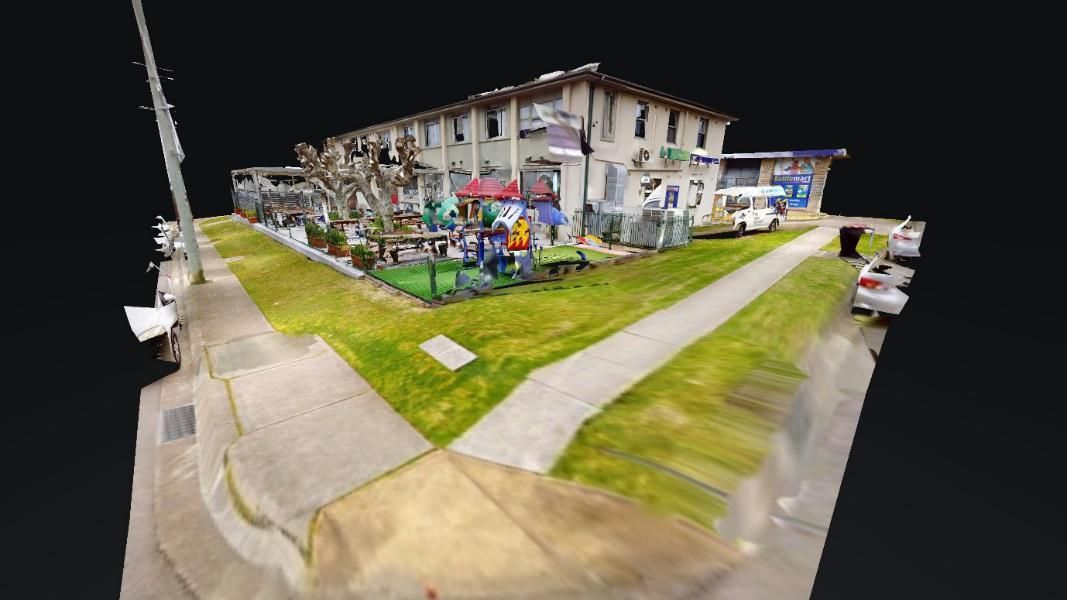

Wangi Hotel (3d walkthrough image
Button
Vineyard Hotel (3D walkthough image)
Button

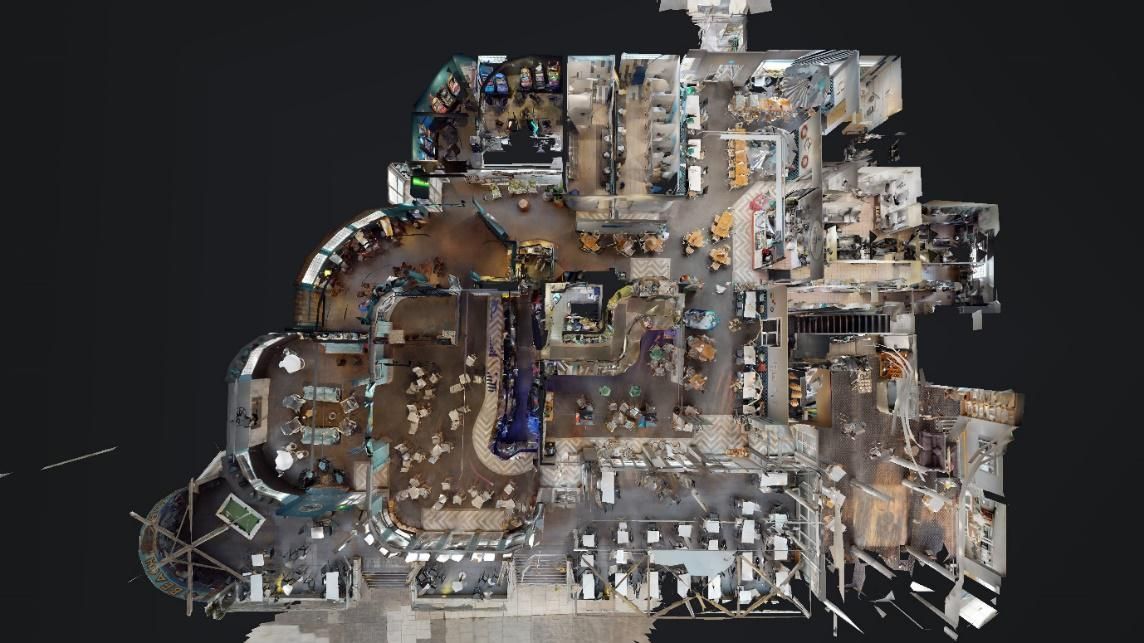

The Beaches Hotel Merewether (3D walkthrough image)
Button
Newcastle Train Station
Button

Some of our Point Cloud Clients

Slide title

Write your caption here

Button

Slide title

Write your caption here

Button

Slide title

Write your caption here

Button

Slide title

Write your caption here

Button

Slide title

Write your caption here

Button

Richard Waterson EJE Architects Newcastle NSW

‘The internal scan complements the drawings and is in lieu of a measure up. We have found it more cost effective to have a Openhouse3D go through. In addition to costing less than if I send a team up there to measure the building, the scanner gives us much greater accuracy and also records all the stuff we don’t on measure ups like locations of AC grilles etc. Lastly the scan provides us with a full walk through of the building so there is no need for site photos etc, this photography covers everything and can be used to form a condition report prior to any work on site too.’
